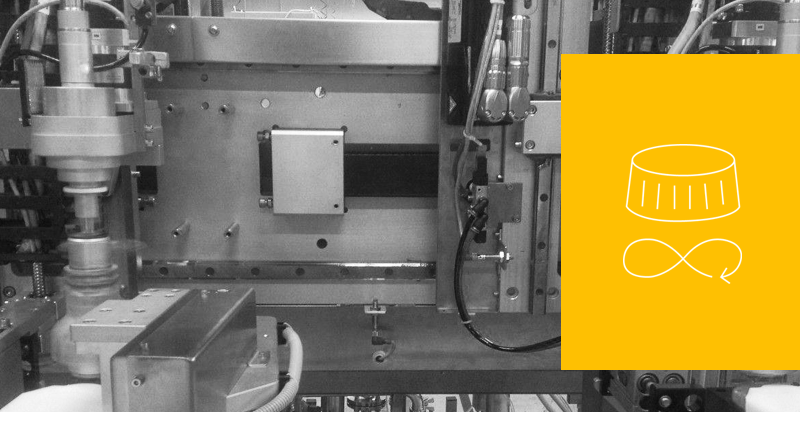

Z9 CONTINUOUS CAPPER

Designed for non-stop workflow

USAGE: COSMETICS AND CHEMICAL INDUSTRY

An efficient and universal machine for semi-automatic, continuous capping of packages during production (non-stop workflow).  The Z9 capping machine caps virtually any cap type with a thread (to include ones with a membrane, collar or other type of safety) fed automatically into the feeder.

TYPES OF PACKAGE

The main features and advantages:

  • One or two servo-driven continuous heads.
  • Non-stop working mode – capping during constant flow of packages.
  • Capping with back-turn which increases production capacity and eliminates rejected packages.
  • Equipped with a closure correctness verification system.
  • Capping torque is set in the control panel.
  • Fast and easy capping head changeover into another cap type.
  • Possibility of also applying an automatic cap sorter.
  • Productivity: ~ 70 pcs./min.


One or two continuous servo-driven heads (depending on productivity assumed) cap bottles when being moved via a conveyor (without being stopped).  The heads are equipped with exchangeable grippers adjusted to the shape and perimeter of the cap. They are exchanged virtually with no use of tools, thus simplifying and shortening the process of changeover to another product (or a cap).

A cap may optionally be equipped with an automatic cap sorter (e.g. of waterfall type). Capping with back-turn additionally enhances productivity and the capping process. Capping torque is set in the control panel.

Because of its compact size, the capping machine may simply be added to the existing production line at a client’s venue.  It allows for an easy and fast increase in production processes with no need for a complicated and money-consuming rebuilding of the whole line.

Productivity: up to 70 pcs./min (depending on a number of capping heads):

The two-head machine:

  • 2,500 pcs./hr for 5L packages
  • 4,000 pcs./hr for 1L packages or smaller ones

A single-head machine:

  • 1,500 pcs./hr for 5L packages
  • 2,000 pcs./hr for 1L packages or smaller ones.
